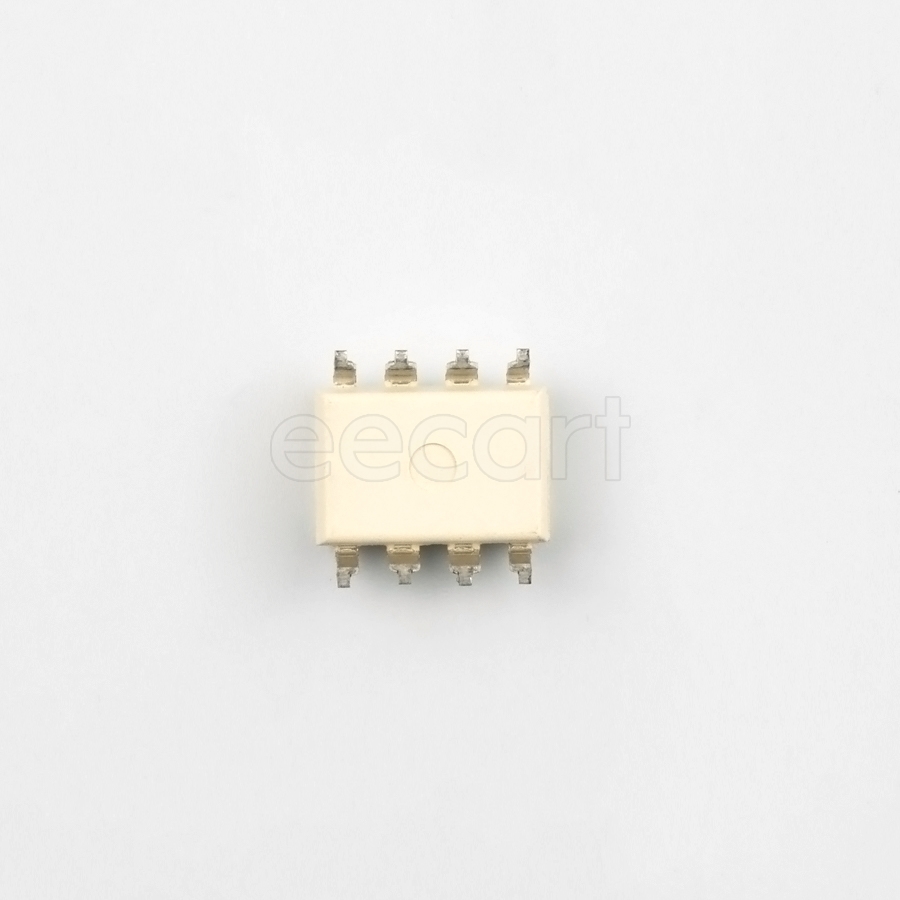

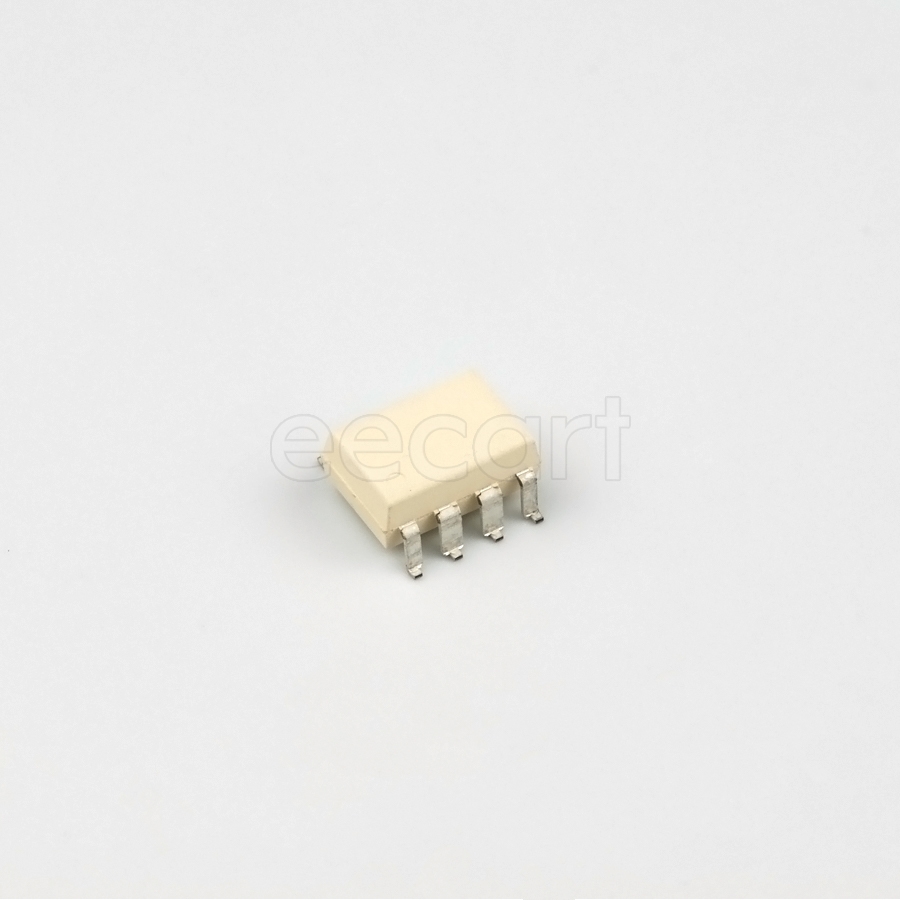

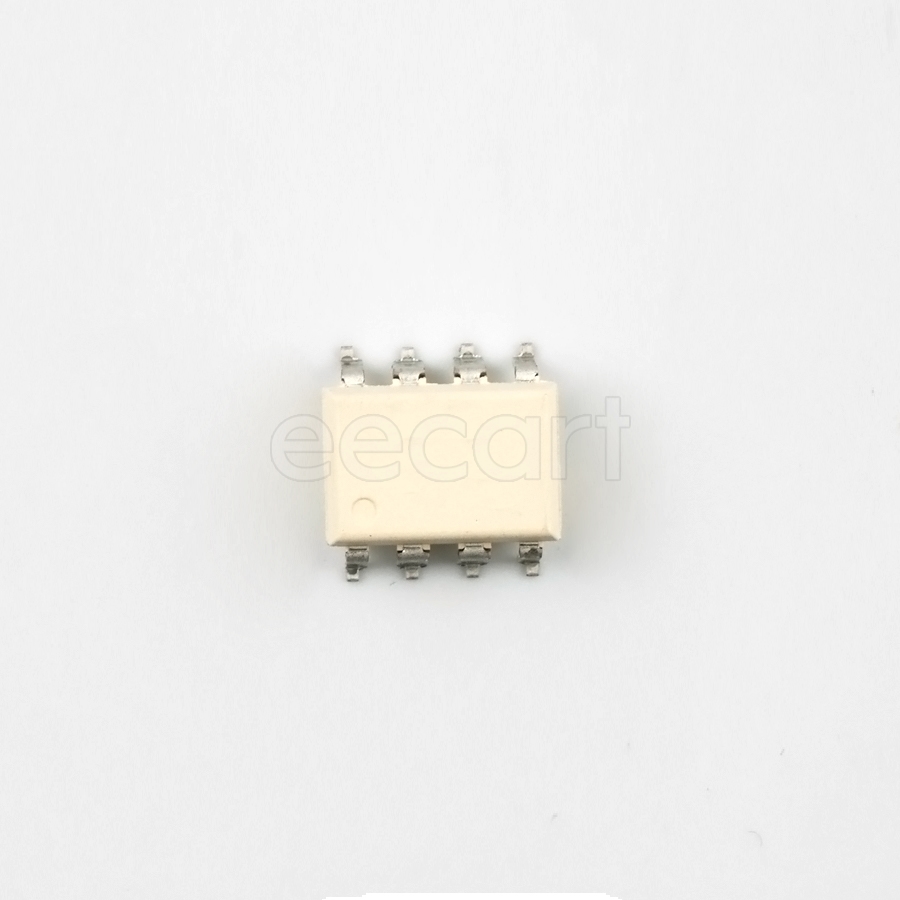

FOD3150SDV
Manufacturer:
On Semiconductor
Mfr.Part #:
FOD3150SDV
Datasheet:
Description:
Optocouplers SMD-8, Gull Wing SMD/SMT number of channels:1 Push-Pull 28 mA 1.5 V Rise Time:500 ns Fall Time :60 ns
| Parameter | Value |
|---|---|
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 0.72 g |
| Approvals | IEC, UL |
| Output Current | 1 A |
| Forward Voltage | 1.5 V |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Power Dissipation | 250 mW |
| Max Output Current | 1.5 A |
| Number of Channels | 1 |
| Turn-On Delay Time | 500 ns |
| Propagation Delay | 500 ns |
| High Level Output Current | 1 A |
| Low Level Output Current | 1 A |
| Direction(Counting Sequence) | Unidirectional |
| Rise Time | 500 ns |
| Isolation Voltage | 5 kV |
| Output Current per Channel | 1.5 A |
| Input Current | 16 mA |
| Max Input Current | 25 mA |
| Pulse Width Distortion (PWD) | 300 ns |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
| Forward Current | 28 mA |
| Fall Time | 60 ns |
| Output Type | Push-Pull |
Stock: 608
Distributors
pcbx
pcbxUnit Price$0.95752
Ext.Price$0.95752
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.95752 | $0.95752 |
| 10 | $0.76345 | $7.63450 |
| 25 | $0.72634 | $18.15850 |
| 50 | $0.69104 | $34.55200 |
| 100 | $0.65744 | $65.74400 |
| 300 | $0.63659 | $190.97700 |
| 500 | $0.61640 | $308.20000 |
| 1000 | $0.61384 | $613.84000 |
| 3000 | $0.58270 | $1748.10000 |
| 5000 | $0.55314 | $2765.70000 |
| 10000 | $0.54373 | $5437.30000 |
